3.2V 30Ah LiFePO4 Battery Cell 4C Rechargeable 3.2V Auto Rechargeable Lithium Ion Lifepo4 Batteries



Normal parameters
NO.
Item
General Parameter
1
Type
3.2V LFP (LiFePO4 Battery)
2
Model
KXD
3
Standard capacity(0.2C5A)
30AH
4
Rated voltage
3.2V
5
Max.charge voltage
3.65V
6
Cut-off voltage
2.0V /2.5V
7
Standard charge current
30A ,1C
8
Max continuous discharge current
30A ,1C
9
Battery dimension
100*20*140mm
10
(Approx.)Total weight(Approx.)
0.65±0.05kg
11
Standard charging temperature
0℃~45℃
12
Discharge temperature
-20℃~60℃
13
Storage temperature
-20℃~45℃
14
Cycle life
>6000 times
15
Free accessories
Included M6 the busbars and bolts
16
Suitable for
Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools…Solar and wind power system, RV,
caravan



Email Us
Enquiry
Categories: , ,

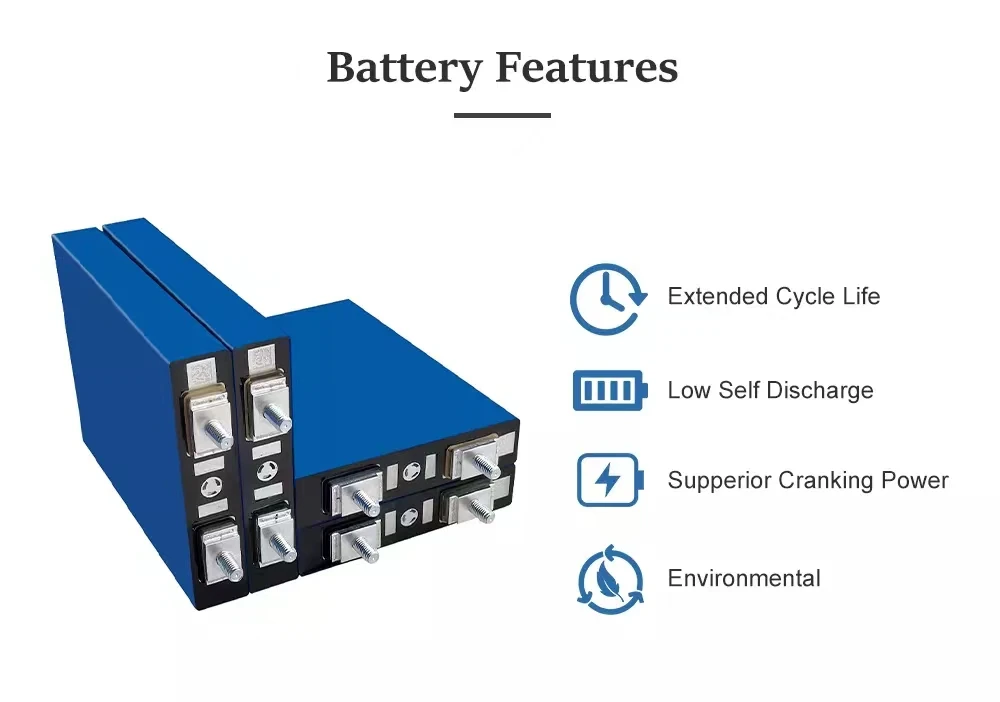

Main Features:

1. Lighter in weight, heavier on power than lead acid battery.
2. Use a grade cells. More than 6000 cycle times.
3. Max discharge continuous current, 1C TO 3C.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. batteries have passed different safety tests.
6. Lithium Battery built with BMS

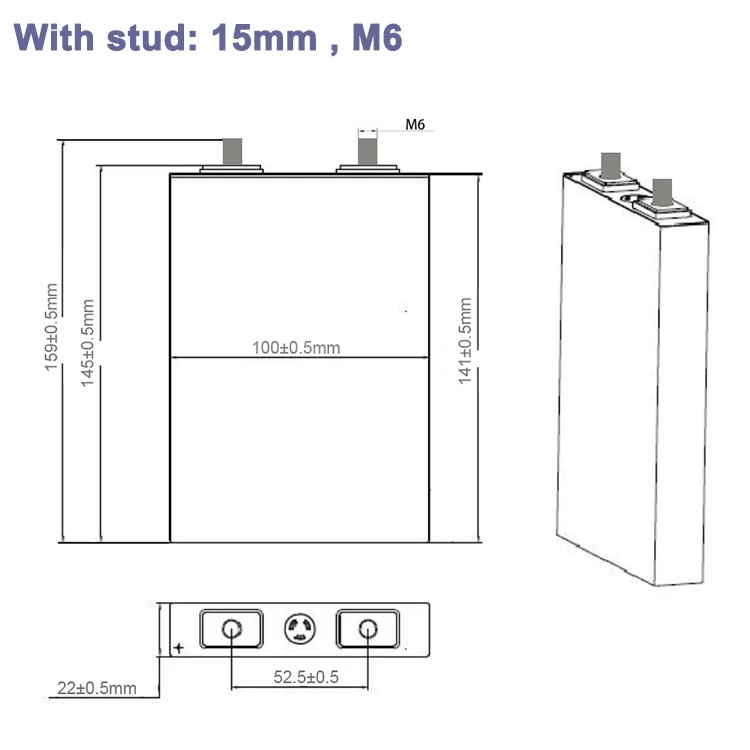

Detailed dimensions

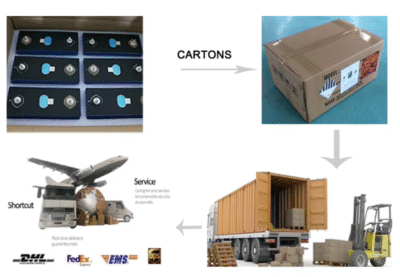

Packing and shipping detail

Packing and shipping:

Packing
1). Best Quality 4-layers exporting carton or Customized Outer Packaging for Paper Bags;
2). Carton Size: Customized or based on actual weight and volume.

Shipping
1). By Express (3-45working days),there are express shipping or economic shipping,suitable for Small Quantity.2). By
Train(25-28days),for EU Country,including customs clearance, all the import tax fees, and UPS delivery to the door.
3). By Sea (15-30 days), it suitable for regular Mass Production.
